Chapter 3-5: Job Processes |

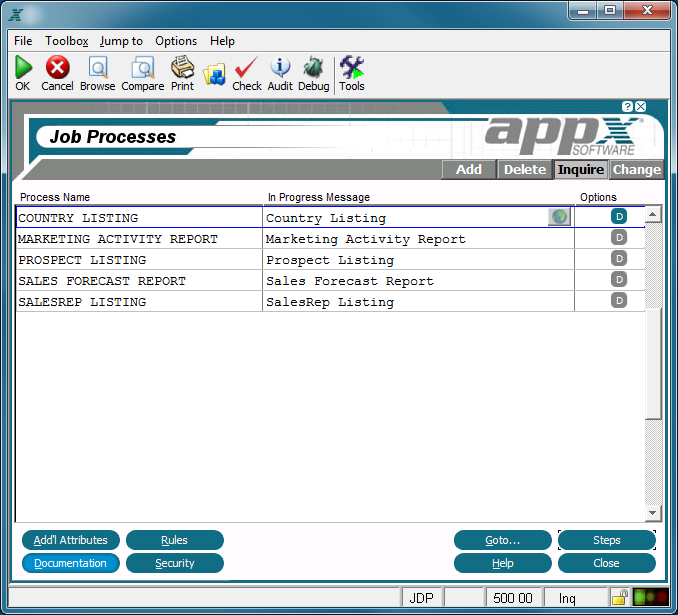

Job Process Specifications Job process specifications establish the general attributes of an job process, including the 'In Progress' message. The Job Processes screen, displayed when you select job from the Process Management overlay, is shown below.
Job Processes Screen The Job Processes screen contains the following fields: Process Name identifies a specific process and must be unique within type and application. In Progress Message field provides text for the message that displays on the screen while the job process executes in the foreground. Opts are indicators that are present whenever documentation (T), rules (R), or additional attributes (AA) have been defined for this process. Buttons are provided at the bottom of each Menu Processes screen for accessing the following options: Additional Attributes - Same as the Process Additional Attributes Option. Rules - See the Job Process Rules Option for details. Goto... - Allows you to identify and retrieve another record by optionally entering a full or partial key. Steps - Shows the list of processing steps defined in this Job. Documentation - Same as the Process Documentation Option. Security - Same as the Process Security Option. Help - Allows you to view online help text for a selected item. Close or Cancel - In Inquire mode, Close allows you to end the current process. Otherwise, cancel allows you to end the current process without saving changes, if any, to the current record. In addition, the menu bar provides the following pulldown menus: Toolbox - Same as the Process Toolbox Pulldown Menu. Jump to - Same as the Process Jump to Pulldown Menu. |
